Gear racks & pinions

Turn rotation into linear movement.

A rack works with a pinion to translate between rotary and linear motion. Define the travel, mounting arrangement, tooth geometry and operating load.

Supplied to your drawing by MAS Industrial Supply — specification review, documented inspection and one U.S. point of contact.

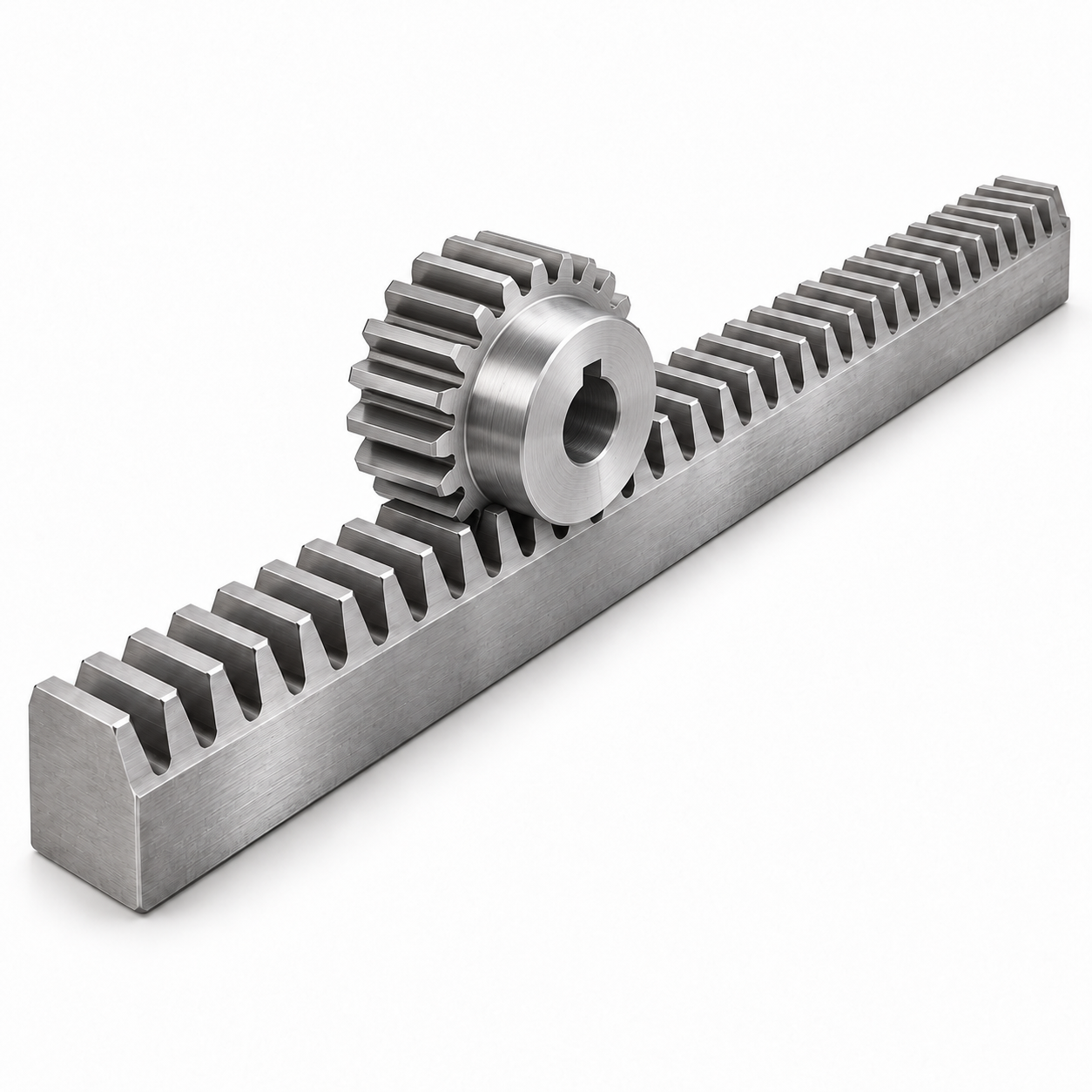

Rack Gears — example of the component family
Example of the component family. Final geometry follows your drawing.
Quality class
Per drawing (AGMA / ISO / DIN)
Documentation
Material certificate & inspection report, as agreed
Quantities
Prototype, replacement & repeat production

OVERVIEW

Rack Gears for industrial OEMs

Rack and pinion sets convert rotation into linear travel for positioning tables, gates and automation axes. Length of rack, module, tooth quality, mounting holes and the mating pinion define the package. Include stroke length, load, acceleration and environmental conditions. Matching the pinion early keeps backlash and stiffness predictable across the travel.

Typical applications

  • Linear axes and gantry systems
  • Machine tool and automation positioning
  • Gates, lifts and doors
  • Material handling transfer systems

PREPARE YOUR RFQ

How to specify rack gears

Send what you have — a drawing, a part number or a sample. These details let us review the manufacturing and inspection route and quote accurately.

Read the full gear RFQ guide →
  1. Module or pitch, straight or helical teeth
  2. Rack length, cross-section and mounting holes
  3. Mating pinion tooth count and bore
  4. Material, hardening and quality class
  5. Stroke, load, speed and acceleration

MANUFACTURING & QUALITY

Production route and inspection

Gear inspection & records

Profile, lead, pitch and runout checked on Klingelnberg gear metrology where specified, with records reviewed before shipment.

Manufacturing route, achievable quality class and lead time are confirmed after drawing review. Compare capabilities →

FAQ

Rack Gears: common questions

Can long racks be supplied in sections?

Yes. Long travels are usually built from matched sections; joint pitch and mounting are defined on the drawing.

Should the pinion be ordered with the rack?

It is recommended. Matching the pair keeps backlash and stiffness predictable across the travel.
